Deploy on AWS

This guide covers deploying GQLForge to AWS using ECS with Fargate.

Docker Image

Use the official GQLForge Docker image or build your own:

FROM ghcr.io/smartcrabai/gqlforge/gqlforge:latest

COPY config.graphql /app/config.graphql

EXPOSE 8000

CMD ["gqlforge", "start", "/app/config.graphql"]

Push the image to Amazon ECR:

aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin <account-id>.dkr.ecr.us-east-1.amazonaws.com
docker build -t gqlforge-api .
docker tag gqlforge-api:latest <account-id>.dkr.ecr.us-east-1.amazonaws.com/gqlforge-api:latest
docker push <account-id>.dkr.ecr.us-east-1.amazonaws.com/gqlforge-api:latest

ECS Task Definition

Create a task definition (task-definition.json):

{
  "family": "gqlforge-api",
  "networkMode": "awsvpc",
  "requiresCompatibilities": ["FARGATE"],
  "cpu": "256",
  "memory": "512",
  "containerDefinitions": [
    {
      "name": "gqlforge",
      "image": "<account-id>.dkr.ecr.us-east-1.amazonaws.com/gqlforge-api:latest",
      "portMappings": [
        { "containerPort": 8000, "protocol": "tcp" }
      ],
      "logConfiguration": {
        "logDriver": "awslogs",
        "options": {
          "awslogs-group": "/ecs/gqlforge-api",
          "awslogs-region": "us-east-1",
          "awslogs-stream-prefix": "ecs"
        }
      }
    }
  ]
}

Deployment Steps

  1. Register the task definition:
aws ecs register-task-definition --cli-input-json file://task-definition.json
  1. Create an ECS service with an Application Load Balancer:
aws ecs create-service \
  --cluster my-cluster \
  --service-name gqlforge-api \
  --task-definition gqlforge-api \
  --desired-count 2 \
  --launch-type FARGATE \
  --network-configuration "awsvpcConfiguration={subnets=[subnet-xxx],securityGroups=[sg-xxx],assignPublicIp=ENABLED}"
  1. Configure the ALB to forward traffic on port 80 to the container on port 8000.

Environment Variables

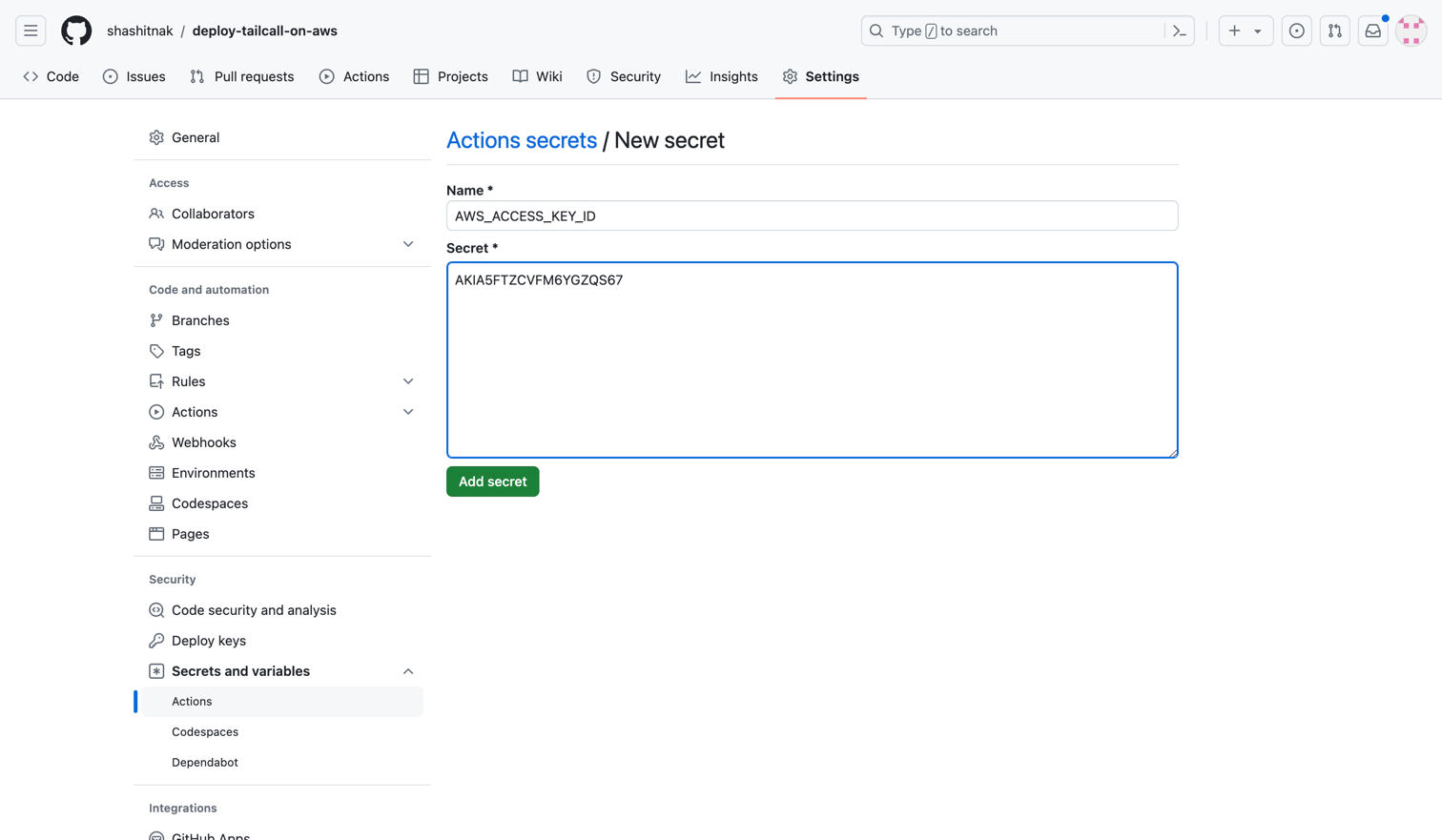

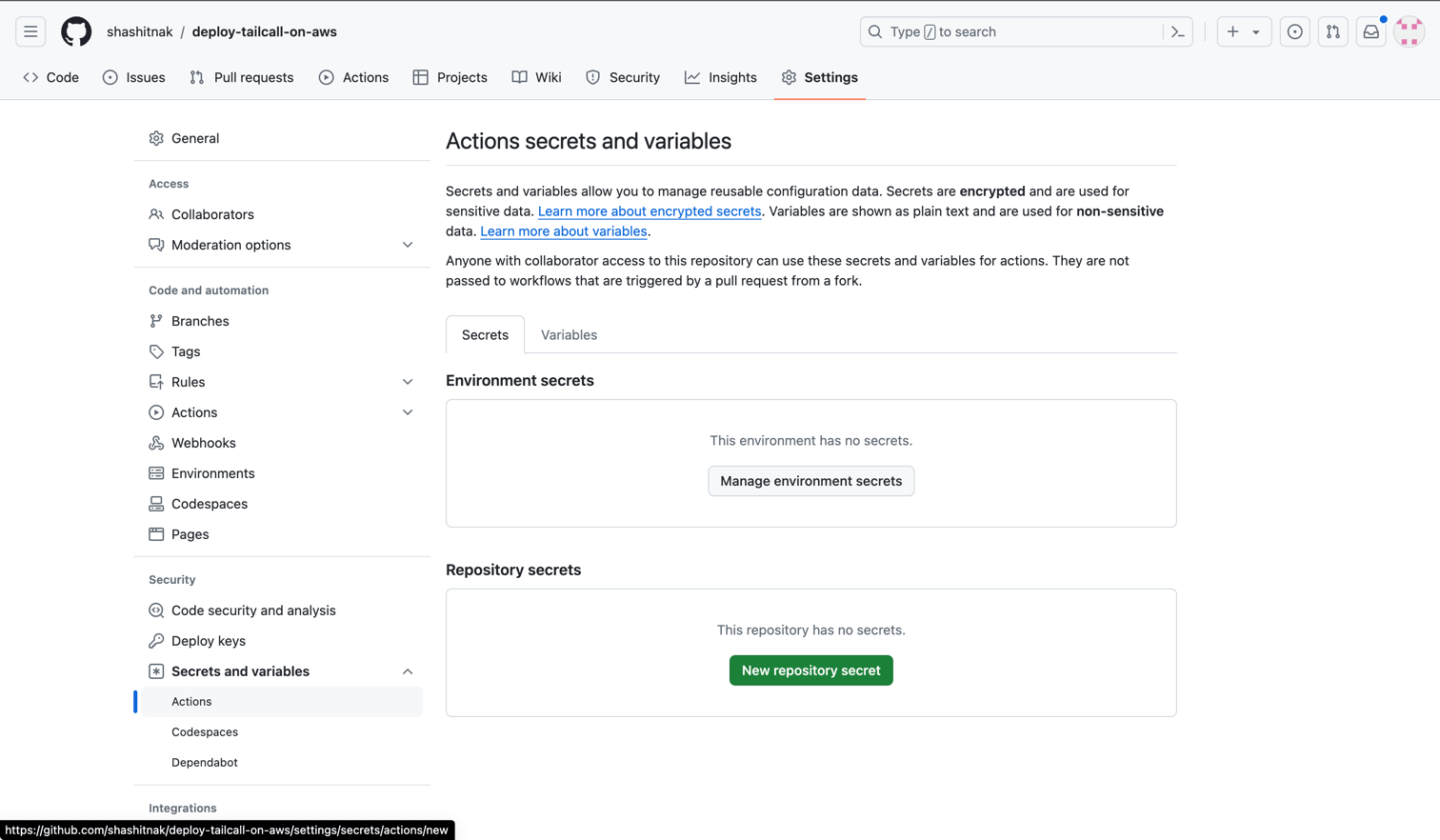

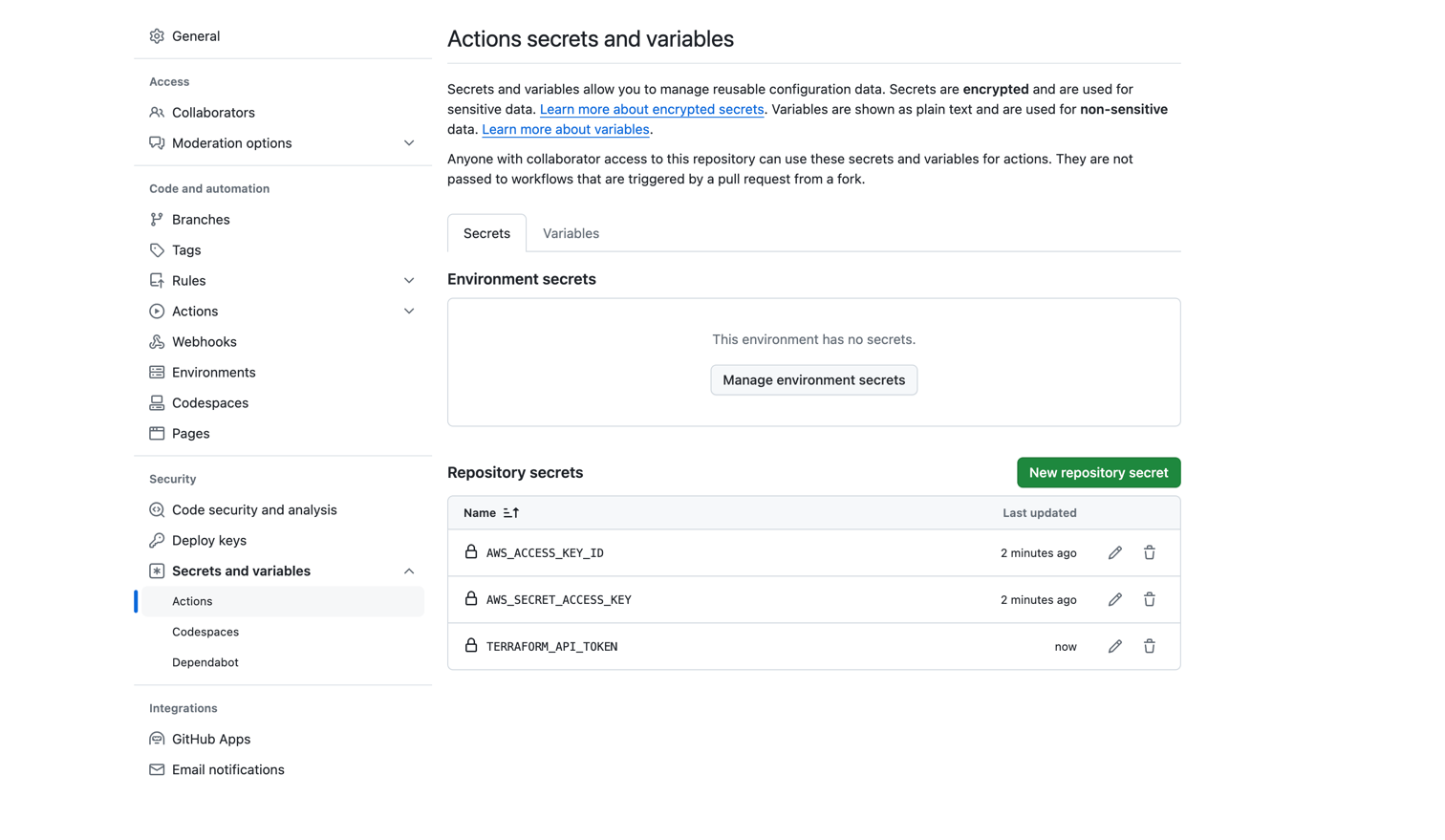

Pass secrets through ECS task environment variables or AWS Secrets Manager for sensitive configuration values.
